Palmer Safety Confined Space Tripod, Winch & 115’ SRL-R System

Availability: In stock

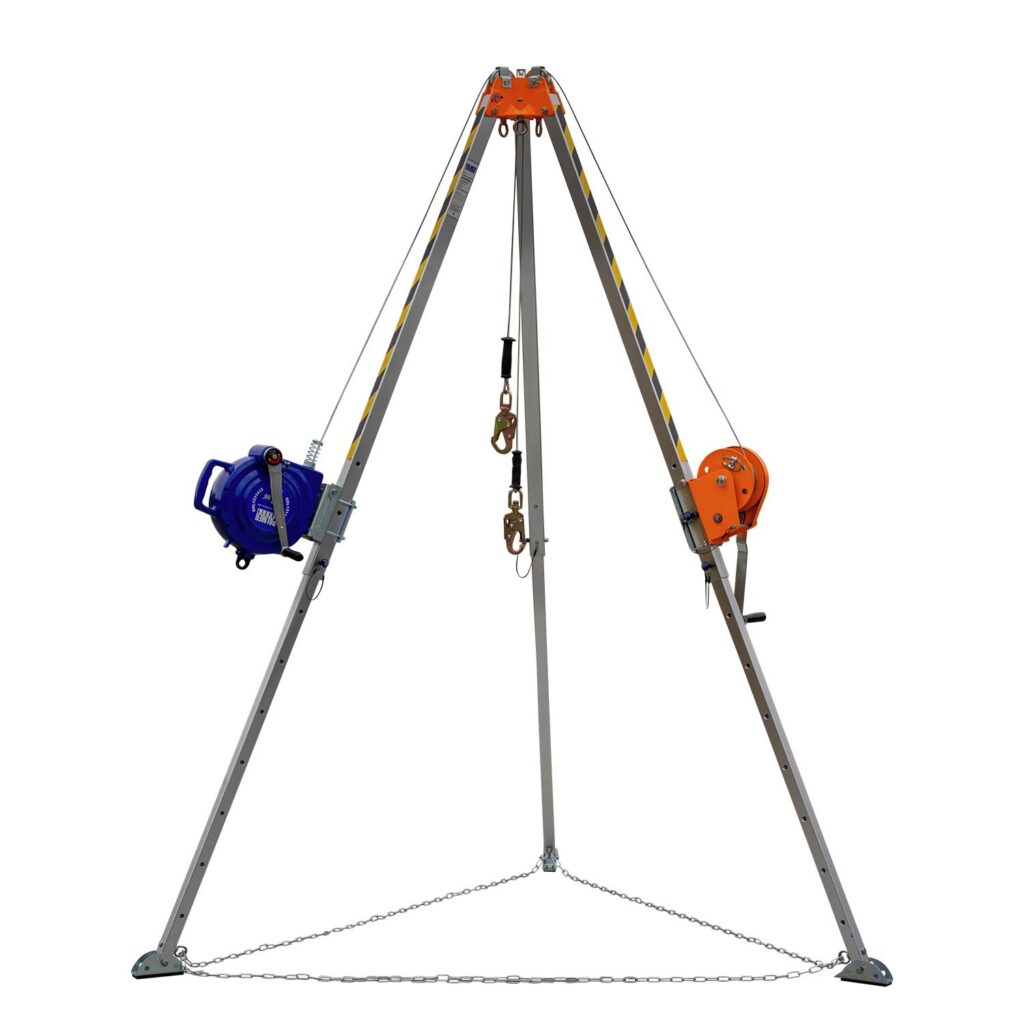

The Palmer Safety 7’ Aluminum Tripod is a lightweight, portable anchorage connector designed for confined space entry and rescue. Constructed from prime quality aluminum alloy with a spray-coated head, it features adjustable telescopic legs and a three-pulley system for versatile rigging. The unit is designed to withstand a static load of 5,000 lbs. and meets ANSI Z359.18- 2017 standards.

Designed for deep confined space applications, this ultimate entry kit pairs the lightweight 7’ Aluminum Tripod with a dedicated personnel winch and an extended-length 115’ BEAST™ Series SRL-R, ensuring comprehensive fall arrest and retrieval coverage for extreme depths.

Key Features

INCLUDED COMPONENTS:

Confined Space 7’ Tripod (CS717): Aluminum alloy tripod with telescopic legs and a three-pulley head.

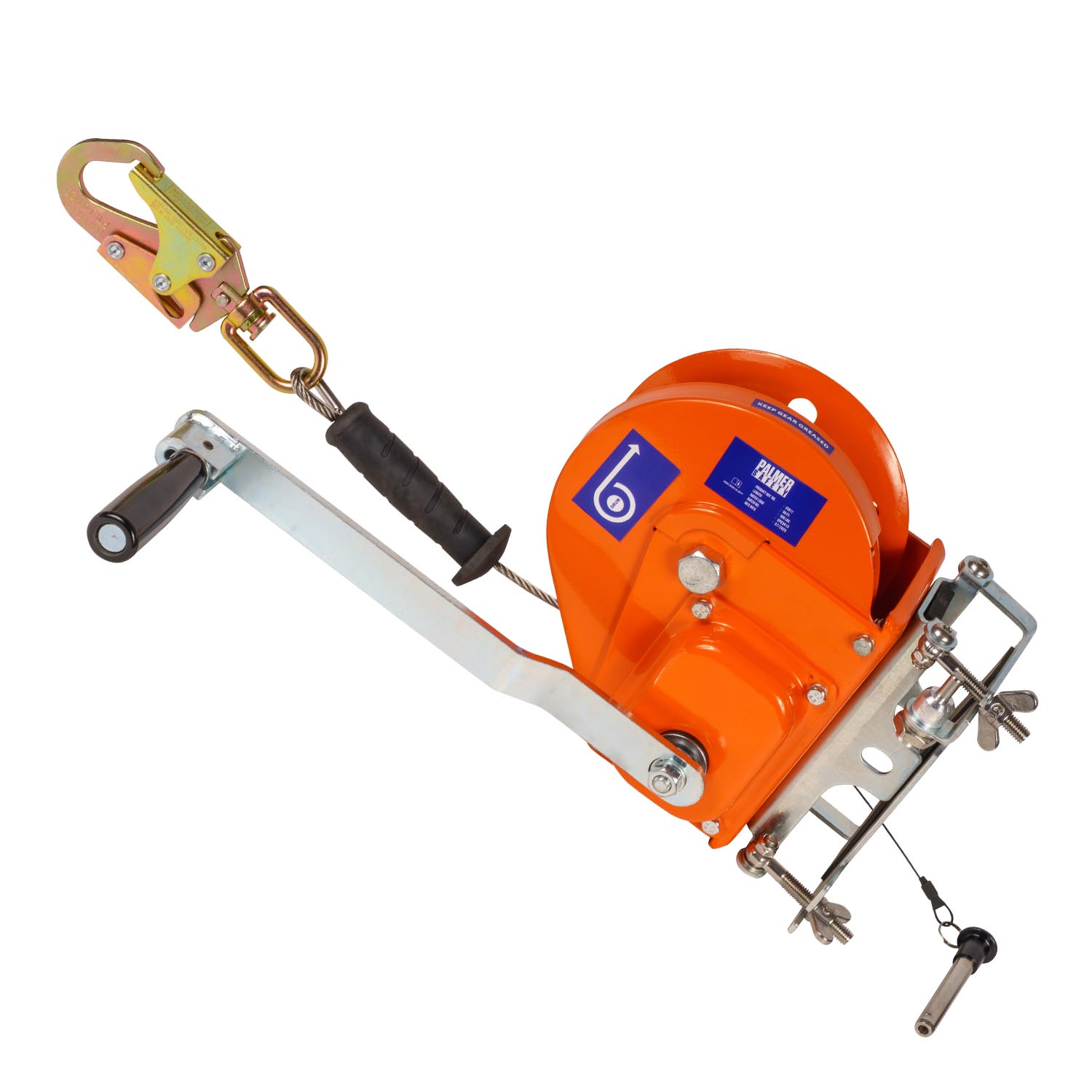

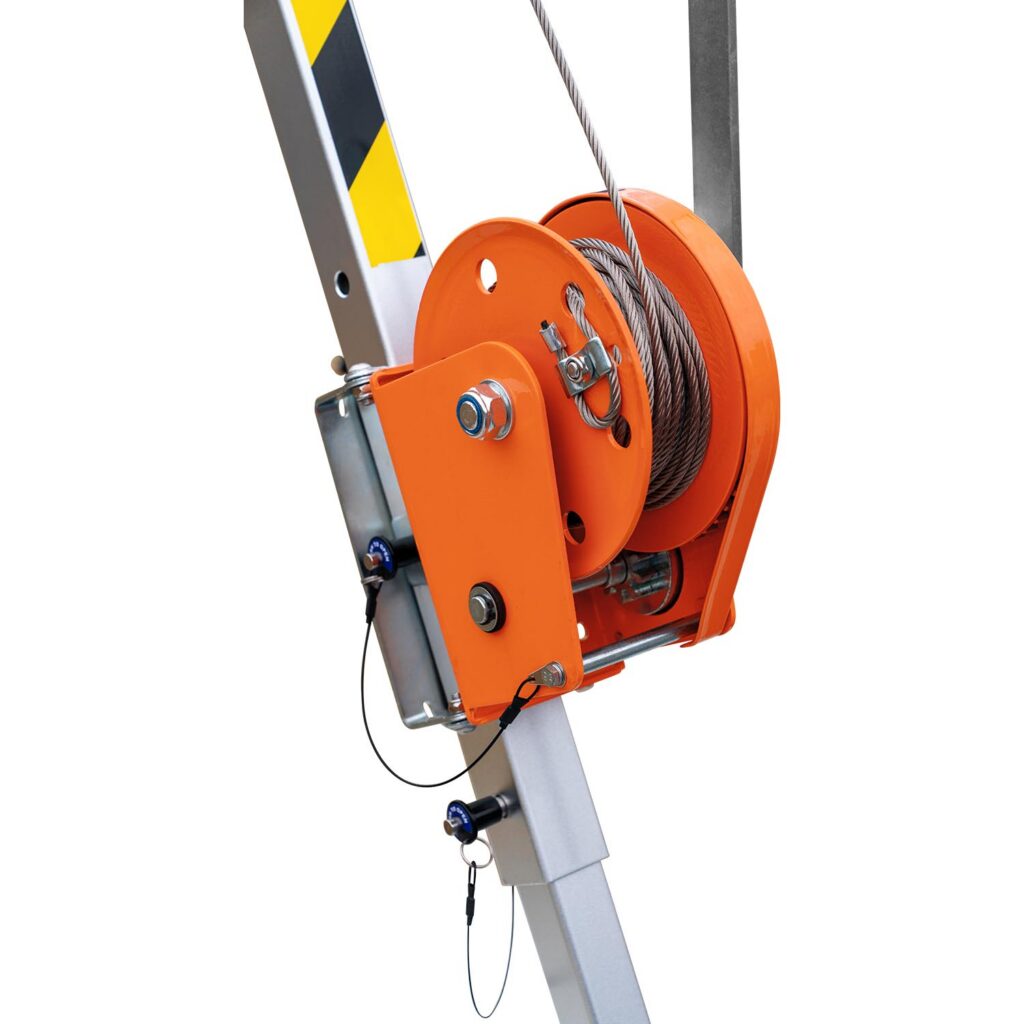

60’ Personnel Winch (CS817): Rescue winch equipped with 60 ft. of stainless steel wire rope and a swivel snap hook.
BEAST™ Series 115’ SRL-R (SRL1511412): Extended 115 ft. galvanized steel wire rope with a built-in hoisting winch and locking pin for dual independent fall arrest and winch modes.
Tripod Mounting Bracket (CS2617): Heavy-duty alloy steel bracket to securely mount the SRL-R to the tripod leg.
