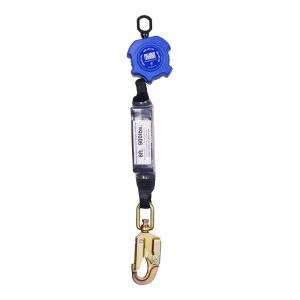

SRL 6’ Lightweight Web with Small Hook

PHYSICAL PARAMETERS:

• Lightest available SRL in its range/class.
• Robust & durable plastic casting.
• Technora Webbing with Energy absorber.
• Swivel steel double locking snap hook at attachment end

APPLICATION:

An overhead anchor point should always be used when available. When an overhead anchor point is unavailable, the recommended anchor point should be no greater than 2’ below the dorsal D-ring. When the available anchor point is greater than 2’ below the dorsal D-ring, a Palmer Safety Leading Edge SRL should be used.

LENGTH:

6 ft. (Maximum)

WEBBING:

Material: Technora webbing 13/16”
Minimum Breaking Strength: 4500 lbs

VITAL TEST COMPLIANCE:

Static Strength: 3000 lbs. for 1 minute.
Dynamic Strength: 300 lbs. mass subjected to a 4’ free fall. SRD lock and remain lock until released.
Dynamic Performance: 282 lbs. mass subjected to a zero free fall with extension of 36” webbing. Breaking force less than 1800 lbs. and arrest distance less than 24”.

WEIGHT:

1.84 lbs. ± 0.02 lbs.
