Palmer Safety Confined Space Tripod & Winch System

Availability: In stock

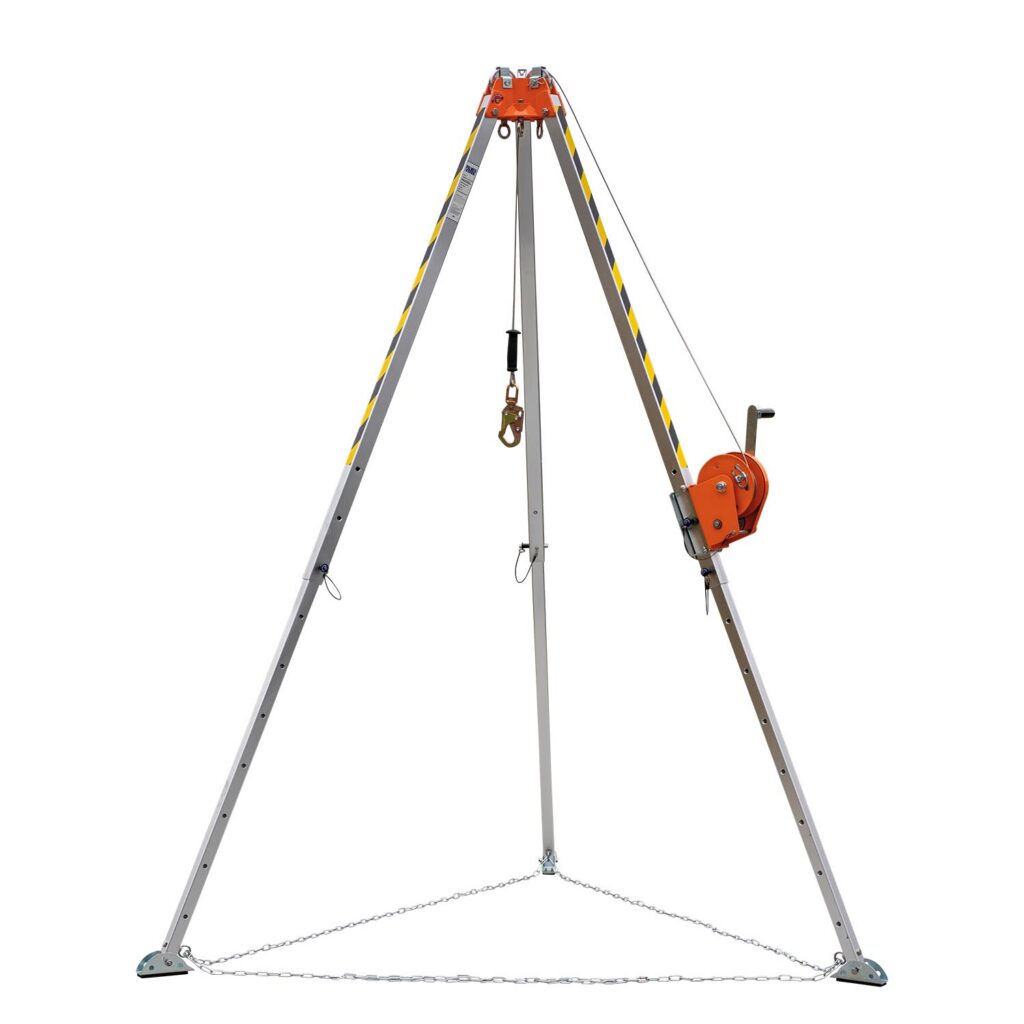

The Palmer Safety 7’ Aluminum Tripod is a lightweight, portable anchorage connector designed for confined space entry and rescue. Constructed from prime quality aluminum alloy with a spray-coated head, it features adjustable telescopic legs and a three-pulley system for versatile rigging. The unit is designed to withstand a static load of 5,000 lbs. and meets ANSI Z359.18- 2017 standards.

The Palmer Safety Confined Space Tripod & Winch System provides a complete, rugged retrieval solution designed for lifting and lowering personnel or materials. The lightweight aluminum tripod serves as a portable anchorage connector, while the handle-operated winch mounts securely to the tripod leg for reliable, everyday operations.

Key Features

INCLUDED COMPONENTS:

Confined Space 7’ Tripod (CS717): Prime quality aluminum alloy construction with adjustable telescopic legs (4.92 ft to 8.2 ft) and an integrated three-pulley system. Meets ANSI Z359.18-2017.
60’ Personnel Winch (CS817): Man-lifting rescue winch featuring 60 ft. (18m) of 13/64” (5mm) stainless steel wire rope, a swivel steel snap hook, and a handle rotating mechanism.
