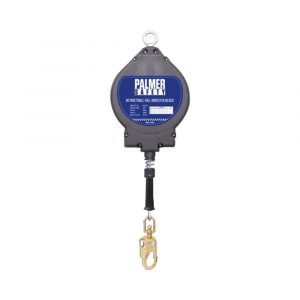

SRD 100′ Galvanized Cable with Small Hook

Availability: In stock

100’  retractable galvanized cable, swivel top composite housing, 3/4” load indicator hook, 1/2” carabiner with tagline included. Blue housing. Meets or exceeds ANSI Z359.14-2014 Class B.

100’  retractable galvanized cable, swivel top composite housing, 3/4” load indicator hook, 1/2” carabiner with tagline included. Blue housing. Meets or exceeds ANSI Z359.14-2014 Class B.

Key Features

PHYSICAL PARAMETERS:

  • Composite housing.
  • Has swivel anchorage eye at anchorage end.
  • Swivel steel snap hook with load indicator at attachment end (as per ANSI Z359.12-2009; gate strength 3600 lbs.).
  • Galvanized steel wire rope (option of having S.S. wire rope available).

LENGTH:

100′

CABLE:

Material: Galvanized steel wire rope diameter of 3/16”
Minimum Breaking Strength: 3300 lbs.

VITAL TEST COMPLIANCE:

Static Strength: 3000 lbs. for 1 minute.
Dynamic Strength: 300 lbs. mass subjected to a 4’ free fall. SRD lock and remain lock until released.
Dynamic Performance: 282 lbs. mass subjected to a zero free fall with extension of 36” lifeline. Braking force less than 1800 lbs. Average braking force less than 900 lbs. and arrest distance less than 54”.

WEIGHT:

28.49 lbs. ± 0.11 lbs.

Additional information

SRD Series

Beast

SRD Length

100'

SRD Type

Cable, Rescue, Class B

SRD Hook Type

Snap
